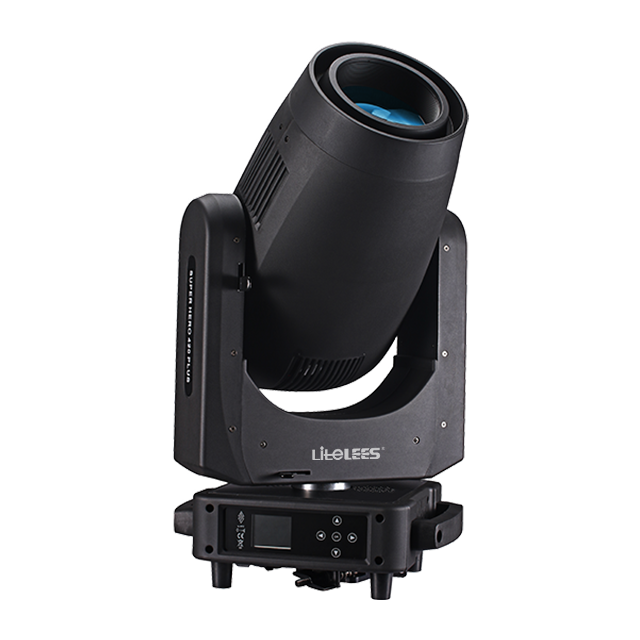

Beam/Spot/Wash 3-in-1
Technical parameters
Power supply
AC100 - 240V, 50/60 Hz
Power consumption: 650W
Light source
Osram Sirius HRI 420W
Average life: 4500 hrs long lifespan
Color temperature: 7800K
Effect
Zoom angle: 2°(Beam), 3-45°(Spot)
418075lux@10m@Min angle
3 color wheels: 15 colors + white
CMY color mixing
2CTO(3200K and 2500K)+1CTB
Fixed gobo wheel: 18 gobos + white
Rotating gobo wheel: 8 gobos + white
Prism: 4-facet + 8-facet
Uniformity filter
Animation wheel
Frost filter for soft-edge projection
Dimming: 0-100% linear
Strobe: 1-12Hz, High-speed/Random/Pulse flash
Pan/Tilt magnetic coding+Sensor accurate positioning
Control
Pan/Tilt: 540/270°
Control mode: DMX512/Art-Net/RDM
DMX channels: 31
XLR in & out: 3-pin & net
Packed
Net weight: 24kg
Carton box size(1-in-1): 78×54×43cm
Gross weight: 31kg
Flight case size(2-in-1): 102×50×92cm
Gross weight: 93kg
Fixture Size
Photometrics
