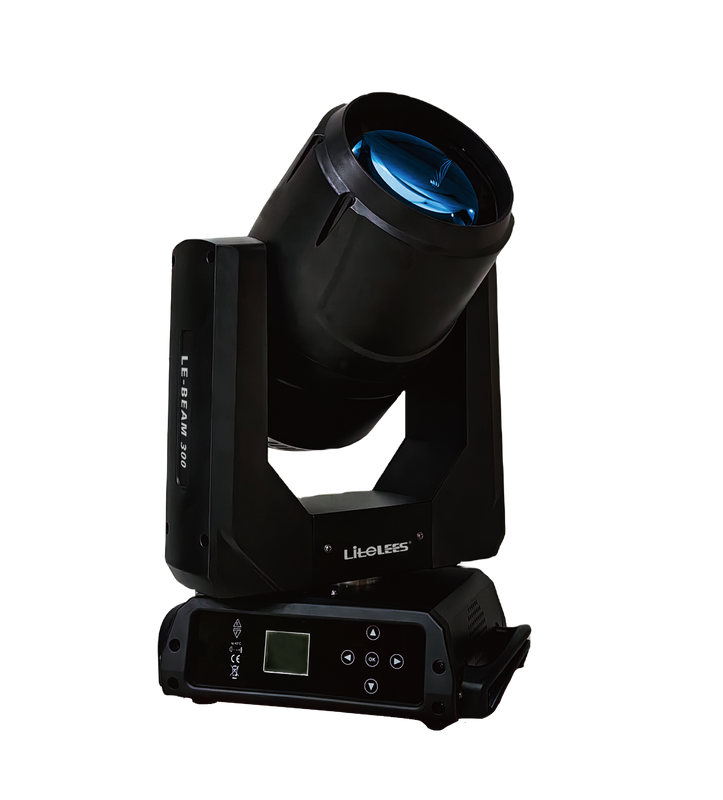

LE-BEAM 300

Technical parameters

Power supply

AC100V - 240V, 50/60 Hz

Power consumption: 300W

Light source

200W LED

Average life: 20000 hrs

Color temperature: 8000K

Effect

Beam angle: 2°, 145300lux@5m

Color wheel: 13 colors + white

Fixed gobo wheel: 15 gobos + white

Prism: 8-facet+8-facet+24 facet

Prism overlay, 7 types prism

Frost filter for soft-edge projection

Focusing: 0-100% linear

Dimmer: 0-100% linear

Strobe: 1-25 Hz, random and pulse flash

Pan/Tilt accurate magnetic coding positioning

Control

Pan/Tilt: Infinity

Control mode: DMX512/RDM

Channel: 18

XLR in & out: 3-pin

Packed

Net weight: 12kg

Carton box size(1-in-1): 61×32×41cm

Gross weight: 17kg

Flight case size(2-in-1): 78×72×50cm

Gross weight: 61kg

Fixture Size

Photometrics

Color Wheel

Fixed Gobo Wheel
